Square Pipe Mill
Square pipe making machine is complete equipment that processes the siphonula into square pipes. The main procedure is that the rolling plate in certain width is unfolded and leveled. Then, they are sent into the forming machine. The steel plate is bent to the needed form in the cold conditions by using the roller. Square pipe making machine mainly produces rectangular pipes. All kinds of pipes in the range of roller production specifications can be achieved by using direct forming tectonics and the assisted high frequency welding machine.

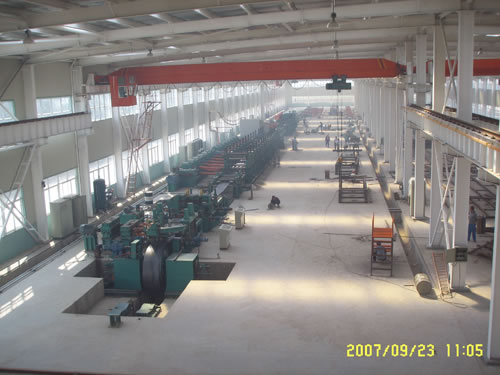

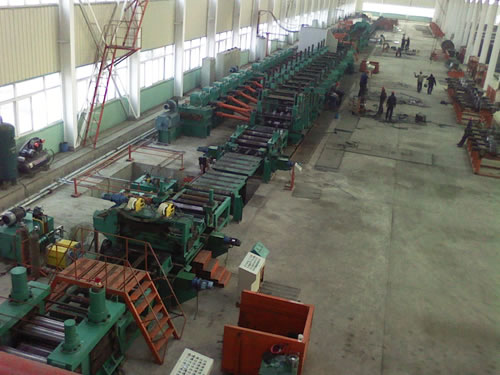

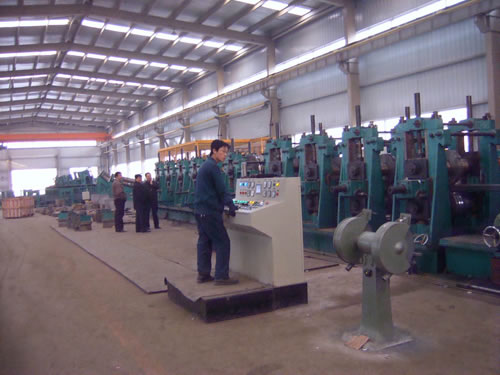

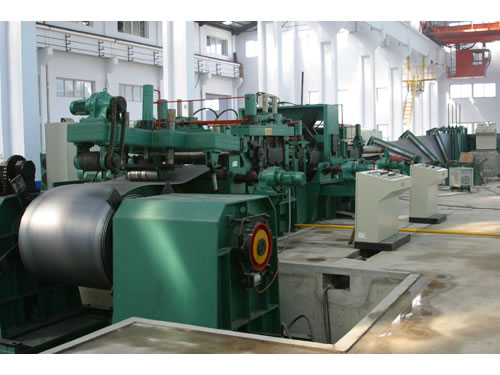

Square pipe production line is composed of uncoiler, unbender unit, active flattening machine, shear and butt welder, storing loop, forming and sizing unit, computer flying saw, charge table, sack and bale machine, high frequency DC drag and product line electric appliance.
1. Square pipe making machine adopts modular mold, more pre-bending and directly molding side craftwork, which has the characteristics of free from tearing down the stander, changing roller quickly and low loading.
2. Square pipe production line is suitable for small production but different specification. It can reduce die roll cost and the time for roller changing.
Main Projects and Clients on Square Pipe Making Machine
|70 × 70 to 200 × 200 × 10 Square and rectangular pipe line||Shandong Taian Kenuo Shaped Steel Co., Ltd|
|LW1250 × 14 Square pipe mill||Pangang Group Kuming Steel Pipe Plant (China)|
|80 × 80 - 200 × 200 × 12.7 Square pipe mill||Tianjin Yingbo Business Co., Ltd|
|50 × 50 - 150 × 150 Squarer pipe mill||Tianjin Yingbo Business Co., Ltd|
|250 × 250 × 12 mm Square pipe mill||Wuxi Yulong Precision Steel Pipe Co., Ltd (China)|
|3000 × 3000 × 13 mm Square pipe mill||Wuxi Yulong Precision Steel Pipe Co., Ltd (China)|
|LW1600 × 16 Square pipe mill||Wulumuqi Kainaer Import and Export Trade Co., Ltd||Export Project|
Process Flows of Square Pipe Production Line
Loading Coil → Uncoiling → Leveling → Cutting and End Welder → Forming Machine → Welding → Water Cooling → Sizing → Flying Cut Off → Finished Products Connection
Available Types of Square Pipe Making Machine
|No.||Model||Specification (mm)||Sheet Thickness (mm)||Coil Weight (ton)||Speed (m / min)||Capacity (kW)||Machinery Floor Area (m2)|
|1||FGJZ-50||Square pipe 20 × 20 to 50 × 50||1 - 3||5||20 - 80||700||18 × 100|
|2||FGJZ-100||Square pipe 50 × 50 to 100 × 100||2 - 8||5||20 - 80||900||18 × 100|
|3||FGJZ-150||Square pipe 60 × 60 to 150 × 150||2 - 10||10||20 - 60||1700||21 × 100|
|4||FGJZ-200||Square pipe 80 × 80 to 200 × 200||2.5 - 12.7||15||20 - 40||1800||21 × 130|
|5||FGJZ-250||Square pipe 100 × 100 to 250 × 250||3 - 14||20||15 - 30||2800||21 × 150|
|6||FGJZ-300||Square pipe 120 × 120 to 300 × 300||3 - 16||30||10 - 25||3600||21 × 160|
|7||FGJZ-350||Square pipe 150 × 150 to 350 × 350||4 - 18||30||8 - 20||3800||24 × 210|
|8||FGJZ-400||Square pipe 200 × 200 to 400 × 400||4 - 20||30||8 - 20||4100||24 × 240|
|9||FGJZ-500||Square pipe 250 × 250 to 500 × 500||4 - 22||40||8 - 20||4500||24 × 260|
|10||FGJZ-600||Square pipe 300 × 300 to 600 × 600||4 - 25.4||40||8 - 20||6000||32 × 260|
Taiyuan HKX Metallurgy Complete Equipment Co., Ltd is one of the large-scale enterprises specialized in designing, developing and manufacturing the complete equipment such as square pipe making machine and cross cutting units. Our products are exported to many other countries such as Malaysia, Indonesia, Thailand, Iran, Poland and Uzbekistan. If you are interested in square pipe production line, welded pipe making machine, hydrostatic testing machine or other machines, please feel free to contact us.
