Section Steel Mill

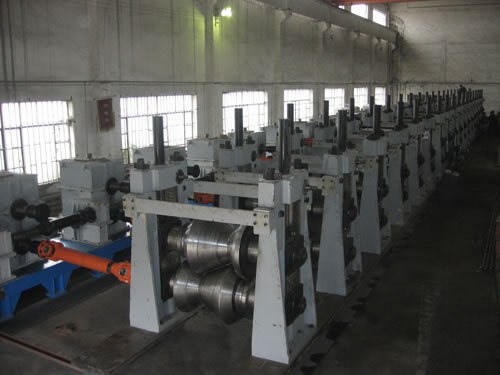

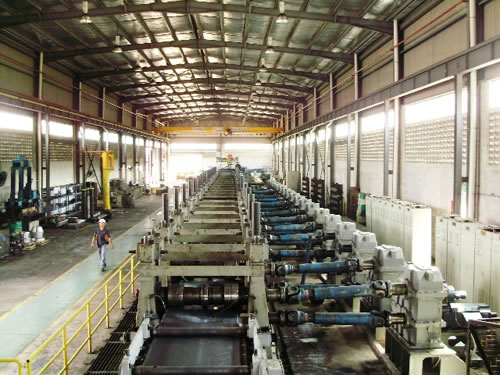

A steel mill or steelworks as an industrial plant is mainly used for manufacturing steels. Section steel production line can produce U-steel, cap shaped steel, C-purlin and other steels. The rolling plate in certain width is unfolded and leveled. Then, they are sent into the forming machine. The steel plate is bent to the needed form in the cold conditions by using the roller.
Brief Introduction of Steel
Steel is an alloy of iron and carbon. It is produced in a two-stage process. First, iron ore is reduced or smelted with coke and limestone in a blast furnace, producing molten iron which is either cast into pig iron or carried to the next stage as molten iron. In the second stage, known as steelmaking, impurities such as sulfur, phosphorus, and excess carbon are removed and alloying elements such as manganese, nickel, chromium and vanadium are added to produce the exact steel required. Steel mills then turn molten steel into blooms, ingots, slabs and sheet through casting, hot rolling and cold rolling.

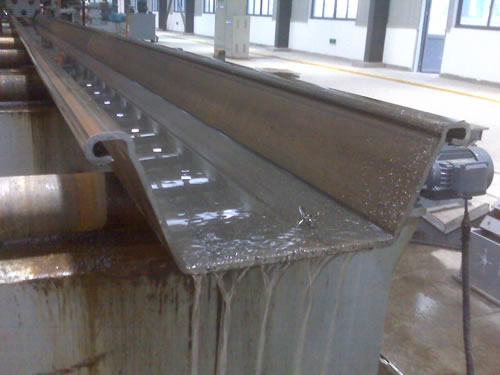

1. Section steel production line can produce the different sizes of steel sheet piling used in the tunnel construction and foundation construction field.
2. Cold roll forming steel mill is used to roll and form cold and hot rolling steels into all kinds of open cold-forming sectional steel like C-shaped steel, U-shaped steel, L-shaped steel and guard fence plates of freeway.
1. Section steel production line has the advantages of excellent cold formability, welding ability, strip flatness and close dimensional tolerance.
2. Cold roll forming steel mill created many innovations in the pile industry such as wider, deeper and multiple thickness sections.
Main Projects and Clients on Section Steel Production Line
|LW1250 × 14 Steel mill||Kuming Steel Pipe Plant of Pangang Group (China)|
|LW1250 × 12.7 Steel sheet pile mill||Malaysia||Export Project|
|LW1400 × 14 Steel production line||Tianjin Haosheng Steel Pipe Co., Ltd in China|
|1400 × 14 mm Heavy-duty steel mill||Oulingte (Shanghai) Heavy Cold Rolling Co., Ltd|
Process Flows of Cold Roll Forming Steel Mill
Loading Coil → Uncoiling → Leveling → Forming Machine → Sizing and Leveling → Flying Cut off → Finished Products Connection
Available Types of Section Steel Production Line
|No.||Model||Specification (mm)||Sheet Thickness (mm)||Coil Weight (ton)||Speed (m/min)||Capacity (kW)||Machinery Floor Space (m2)|
|1||LWJZ-200||50 × 50||1-3||5||20-80||500||18 × 100|
|2||LWJZ-400||100 × 100||2-8||5||20-80||700||18 × 100|
|3||LWJZ-600||150 × 150||2-10||10||20-60||900||21 × 100|
|4||LWJZ-800||200 × 200||2.5-12.7||15||20-40||1000||21 × 130|
|5||LWJZ-1050||250 × 250||3-14||20||15-30||1200||21 × 150|
|6||LWJZ-1250||300 × 300||3-16||30||10-25||1600||21 × 160|
|7||LWJZ-1400||350 × 350||4-18||30||8-20||1800||24 × 210|
|8||LWJZ-1600||400 × 400||4-20||30||8-20||2000||24 × 240|
|9||LWJZ-2000||500 × 500||4-22||40||8-20||2500||24 × 260|
|10||LWJZ-2200||600 × 600||4-25.4||40||8-18||3000||32 × 260|
Taiyuan HKX is located in the high and new technology industrial development zone in Taiyuan, the heavy industrial base in China. Our company relays on the good science and technology environment and devotes ourselves to provide the section steel production line with clients.
